RK3399 Linux System Motherboards 4G LVDS 4K Android 10 Control Board For Media Player

Brand Name : ADW

Model Number : AD-K28P

Certification : CE,RoSH,FCC

Place of Origin : China

MOQ : 1pcs

Price : $63-$88/pcs

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100,000pcs/Month

Delivery Time : Samples sent out 3-5 days, MP 15-30 days

Packaging Details : 1pc/bubble bag, proper qty in a carton

Cpu Solution : RK3399 Quad-Core

Operating System : Android7.1/9.0/10.0/11.0/12.0

Frequency : 1.8GHz

Power Adapter : AC100-240V.50-60HZ

Real Time Clock : Built-in Real-time Clock Powered Battery

Screen Interfaces : LVDS, EDP, MIPI

Power : 12V

Expansion Slots : SD, USB

Emmc : 16GB,32GB,64GB optional

Ram : 4GB

Ports : 3 UART / TTL /GPIO

Internet : BT,WIFI, Ethernet

SD Card : support

Ethernet : 10/100Ethernet

On board Backlight : Support 3.3V/5V/12V Optional

Chipset Manufacturer : Rockchip

CPU : RK3399

Contact Now

Rk3399 Six-core Industrial Android PCB Board

Overview:

Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.

Characteristic:

 It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.

 Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.

 A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.

 Multi-channel USB interface, serial output.

 Support 4K video play with HDMI 2.0 HD output.

 Strong anti-electromagnetic interference and electromagnetic compatibility

Products Description

RK3399 Linux System Motherboards 4G LVDS 4K Android 10 Control Board For Media Player

Product Parameter

CPU	Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU
Main frequency	ARM Mali-T860MP4 GPU
Deposit	LPDDR4 4G
Built-in storage capacity	EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface	LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
	MIPI screen interface, maximum resolution 1920*1080
Screen voltage	Support 3.3V/5V/12V optional
Touch screen	Provide I2C interface (multi-point capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
Network	With RJ45 interface, support 10/100 Ethernet
	Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0
Image rotation	Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)
Real Time Clock	External real-time clock power supply battery
Interface device	Support MIPI interface camera
	6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
	2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.)
	SD card, maximum support 64GB
	Class D power amplifier: 3W*2 8 ohms, support microphone
	HDMI 2.0 output
Audio	MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video	Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture	Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function
Power Adapter	Input: AC100-240V.50-60HZ, output: DC12V 3A

Customization

About Sunchip

1. 12 years experience in PCBA
2. Strong R&D team over 70 people
3. Factory passed ISO9001 quality system certification
4. Big workshop area of over 3500 square meters with more than 200 employees.
5. Have a senior R&D team, with hardware engineers, software engineers, product engineers and so on, can undertake all kinds of OEM/ODM orders processing and production;
6. One-stop production of the factory, from PCB patch. Plug-in. Test. Assembly. Packaging and shipment are completed in this factory, reducing the flow of intermediate links;
7.We can support drop-shipping for 1pcs, welcome to order, and welcome to visit the factory.

RK3399 Linux System Motherboards 4G LVDS 4K Android 10 Control Board For Media Player

Payment and Delivery

1.Packing: carton box or wood case

2.Payment methods: accept T/T,Western Union,Paypal and Cash.

3.RMA Policy: customer bear all
the freight and duty charge to factory,and the factory afford return freight charge.

4.Warranty: 12 months warranty. Paid
maintenance over 12 months.

5.Remark: ROHS, CE & FCC certificates in e-file format are available.

6.MOQ: 1pc, sample order are

welcome for your evaluation.

FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?

A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!

New Arrival!!!

8K RK3588 AIot Edge Computing industrial board with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.

Product Tags:

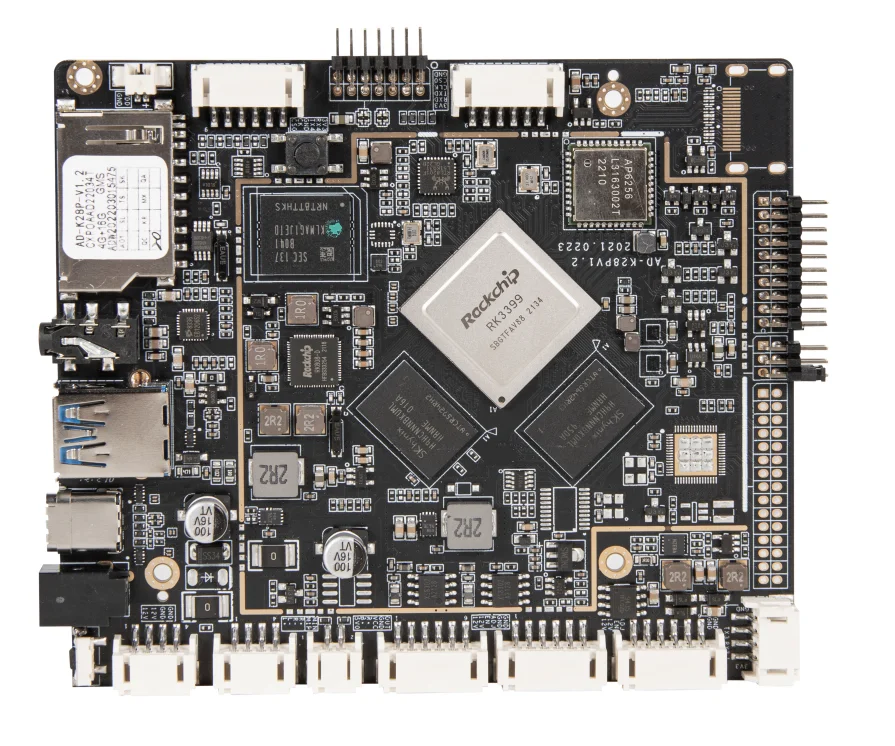

RK3399 Linux System Motherboards 4G LVDS 4K Android 10 Control Board For Media Player Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Sunchip Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

RK3399 Linux System Motherboards 4G LVDS 4K Android 10 Control Board For Media Player

RK3399 Linux System Motherboards 4G LVDS 4K Android 10 Control Board For Media Player

4K Android 10 Control Board

4G LVDS Linux System Motherboards

Media Player Linux System Motherboards

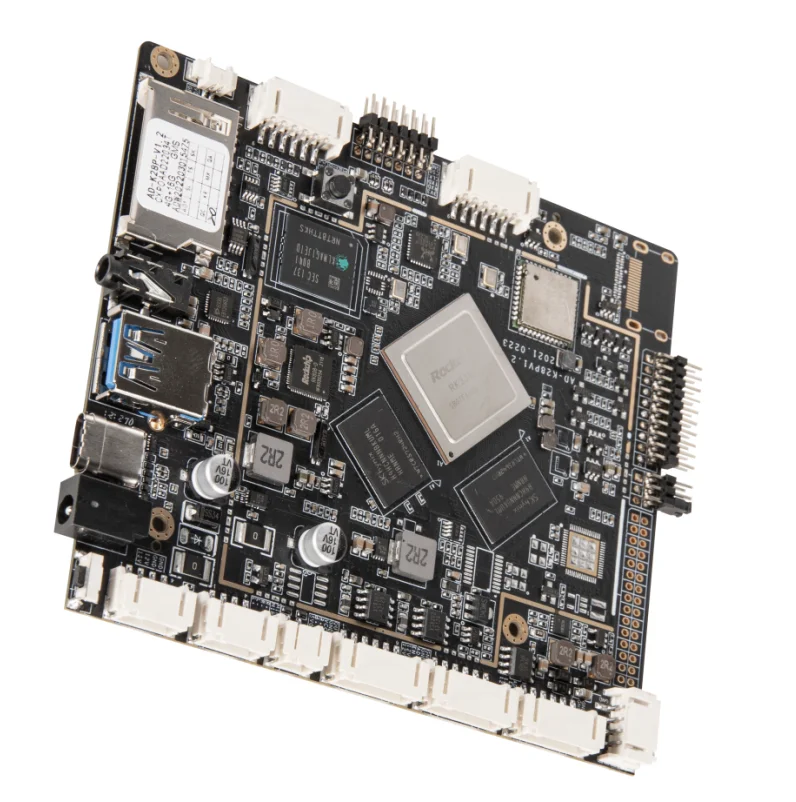

RK3399 Linux System Motherboards 4G LVDS 4K Android 10 Control Board For Media Player Images
